CNC Routing + 3D Printing

Home › Projects › CNC Routing + 3D Printing
מע”ר תל אביב יפו – מצב קיים של הרקמה הבנויה והדגשת הפיתוח האינטנסיבי של הבנייה העתידית
במסגרת פרויקט הגמר במסלול לאדריכלות נוף.

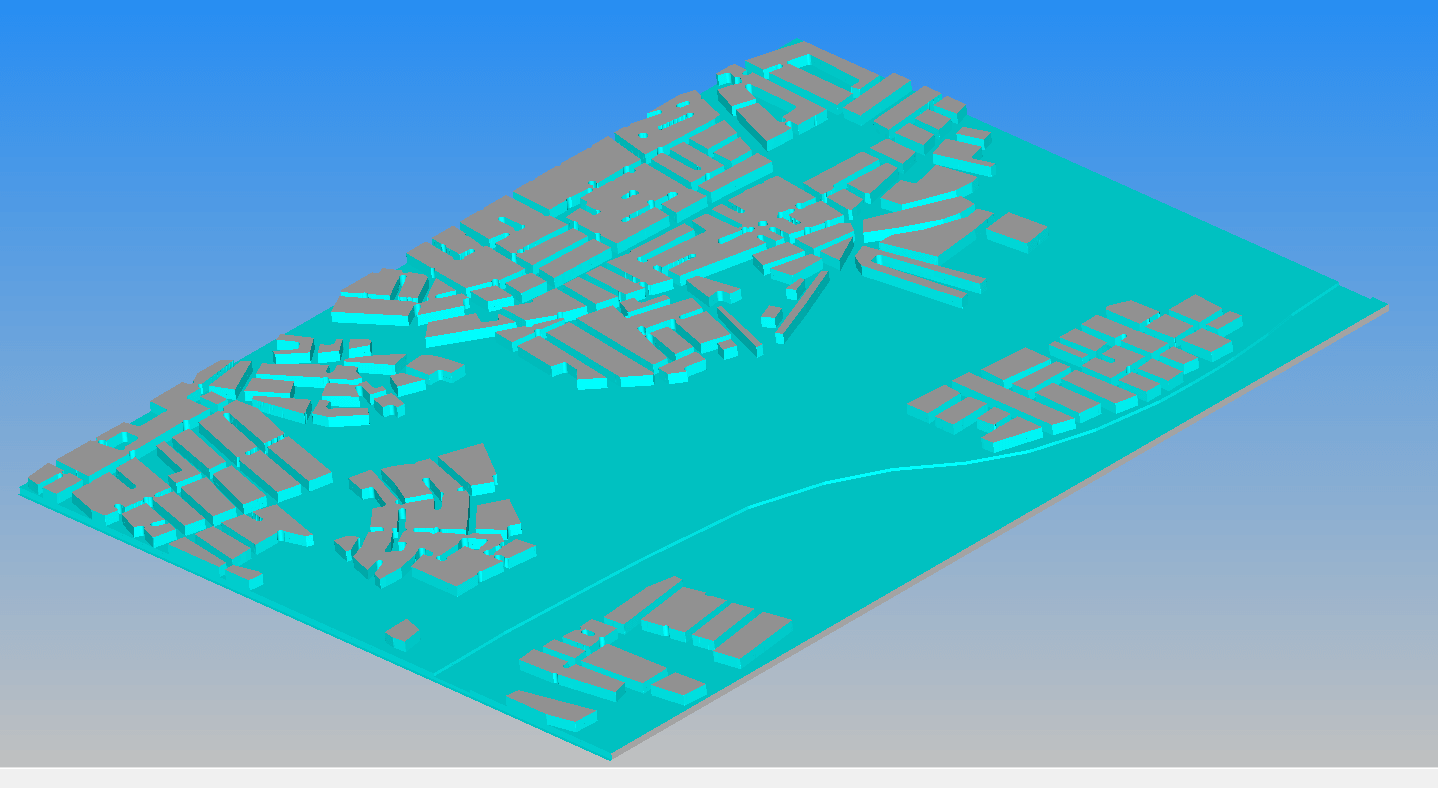

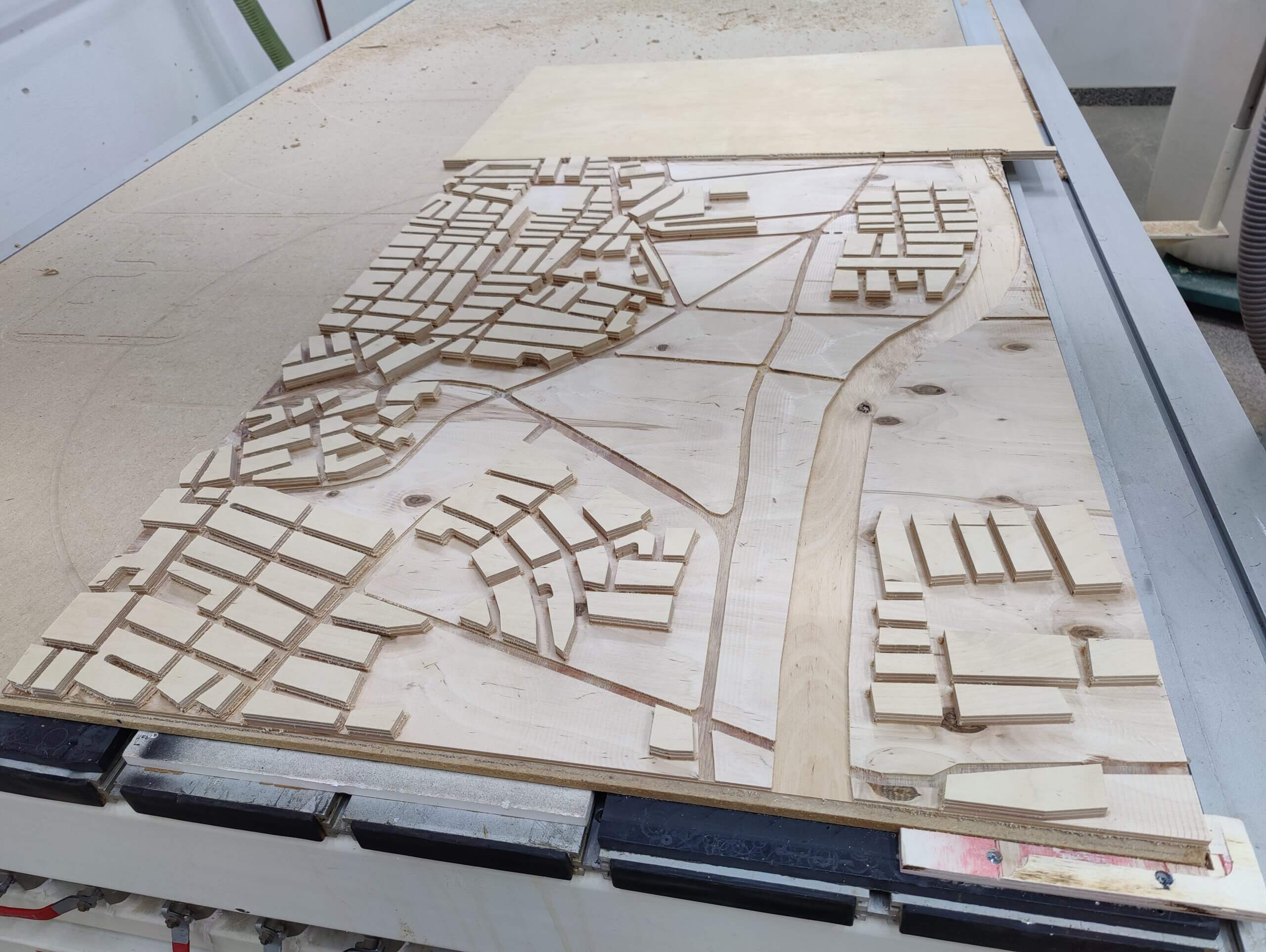

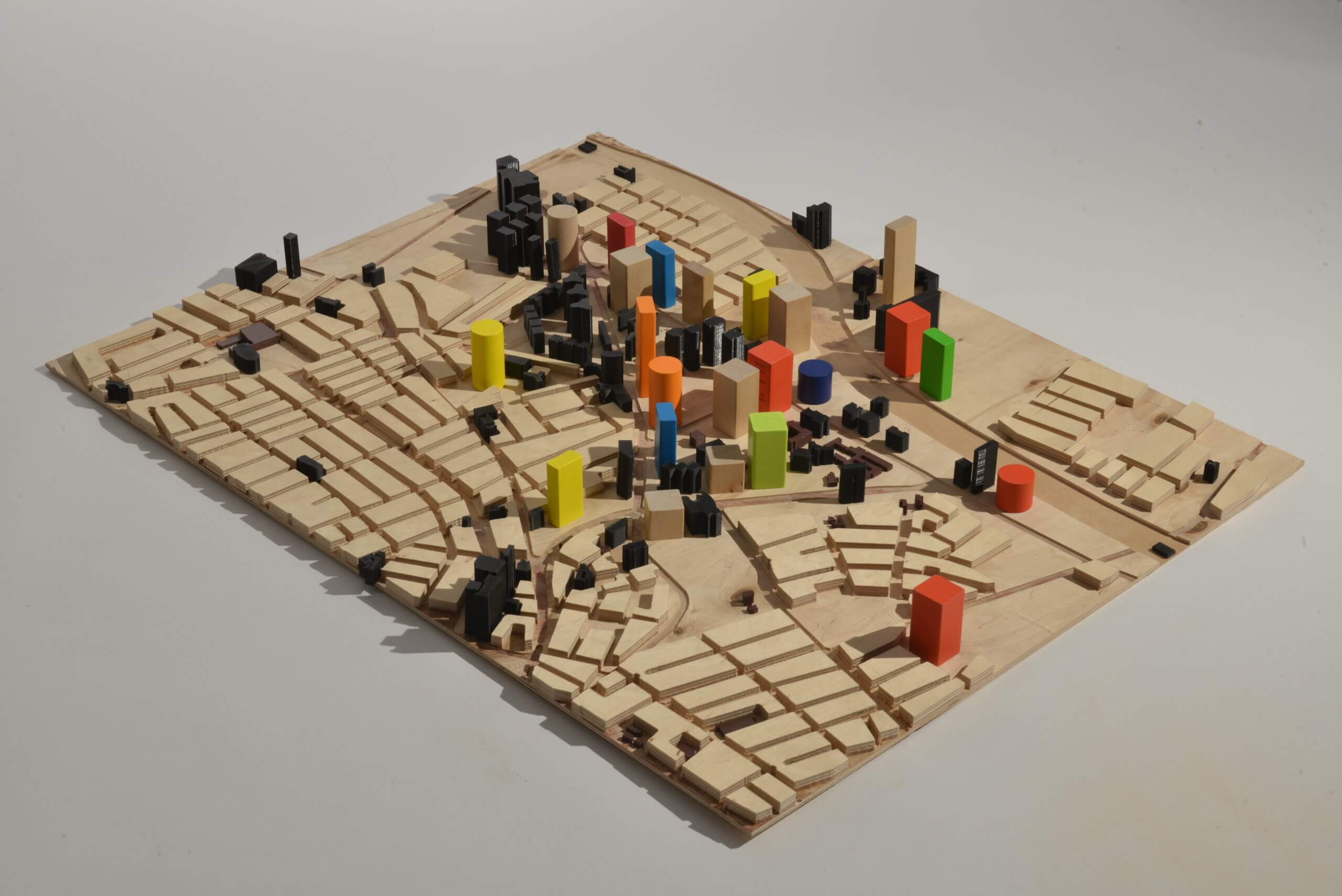

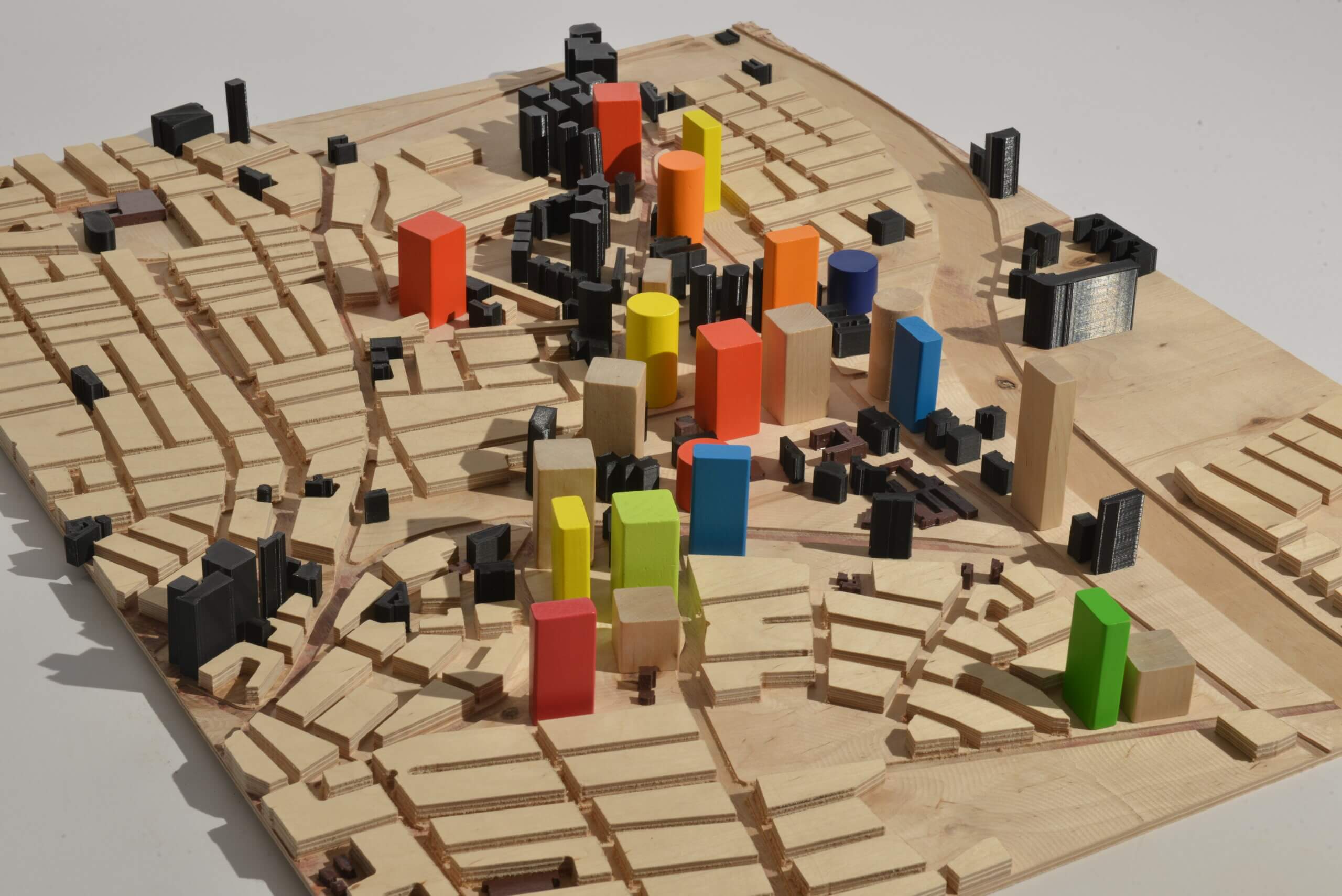

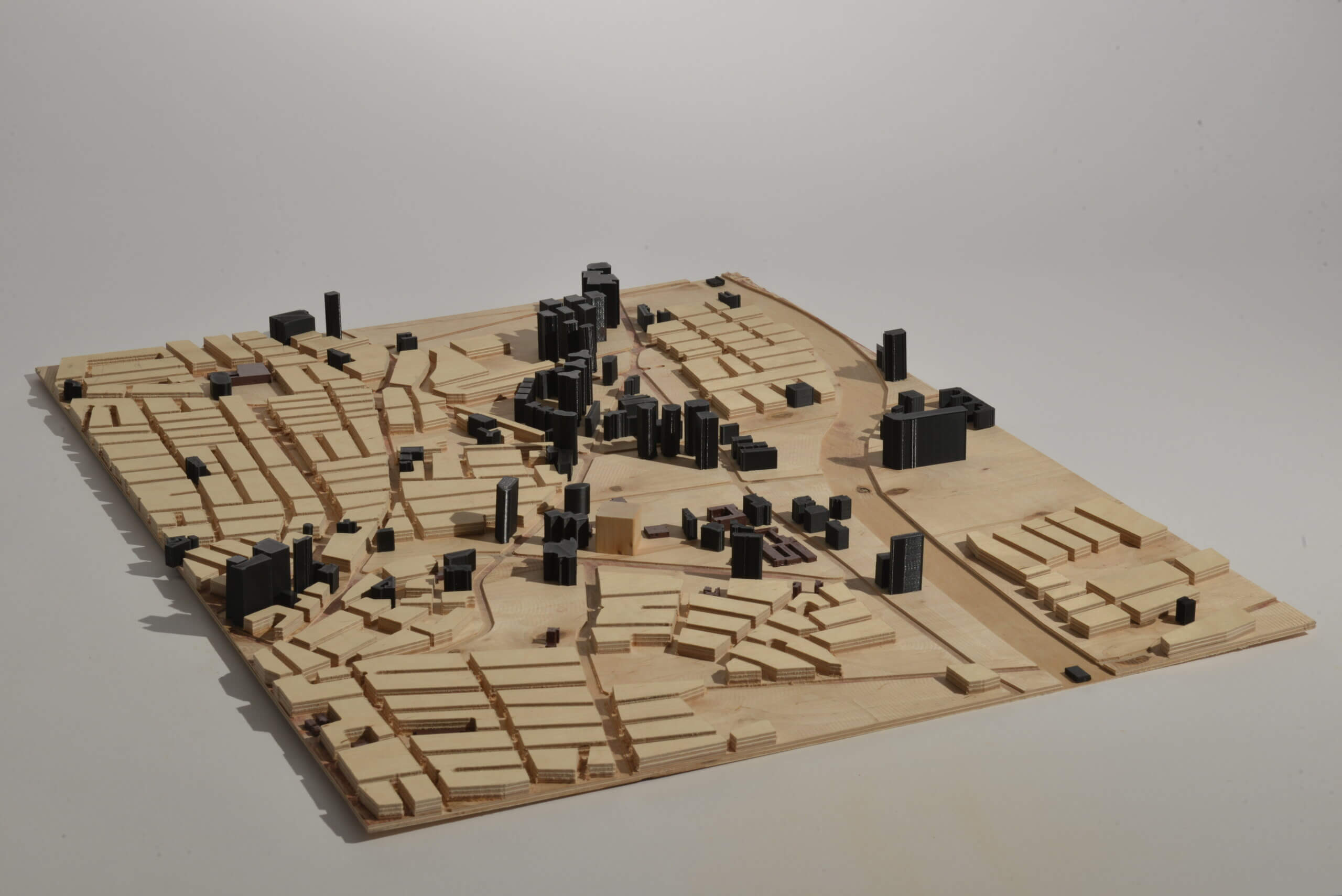

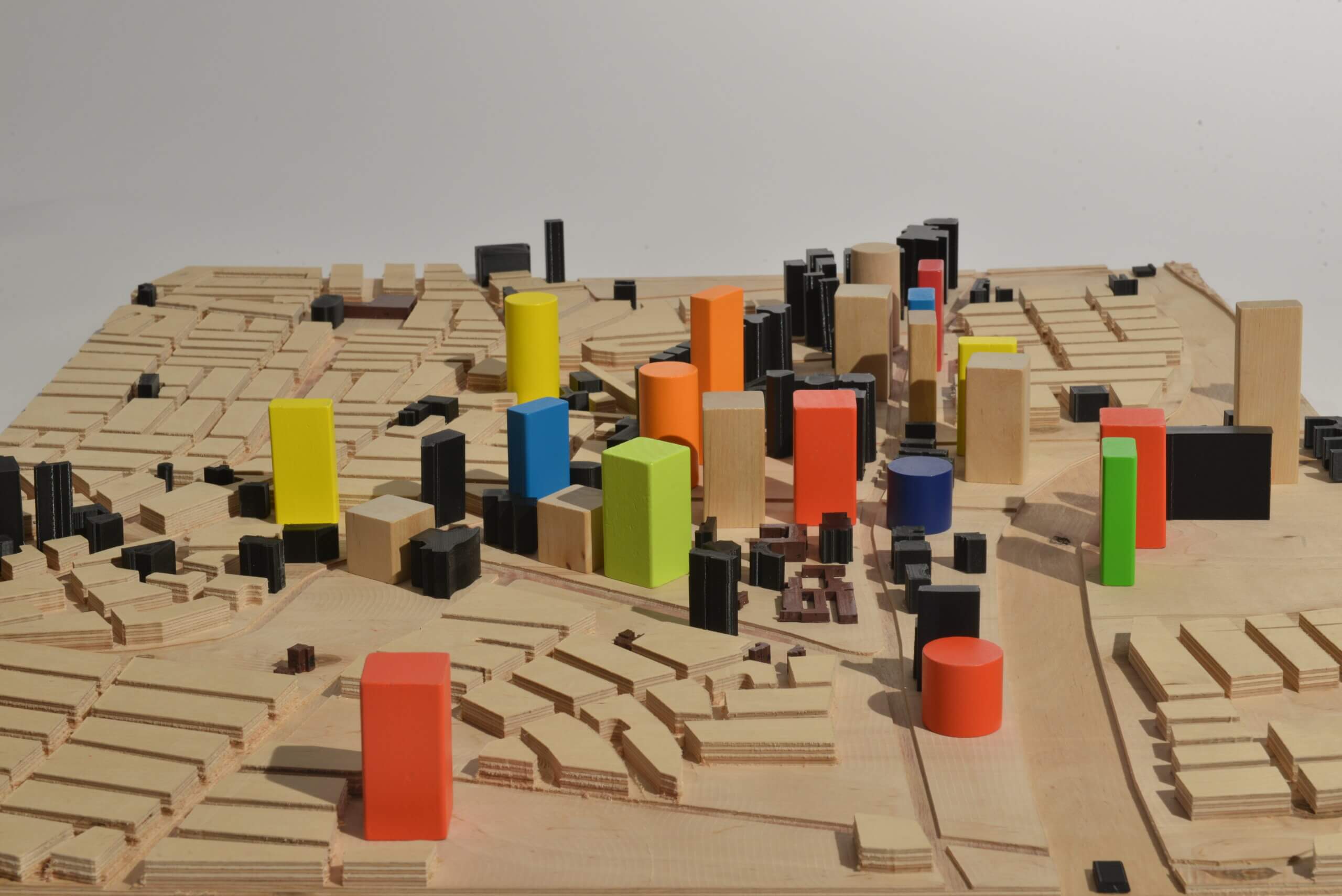

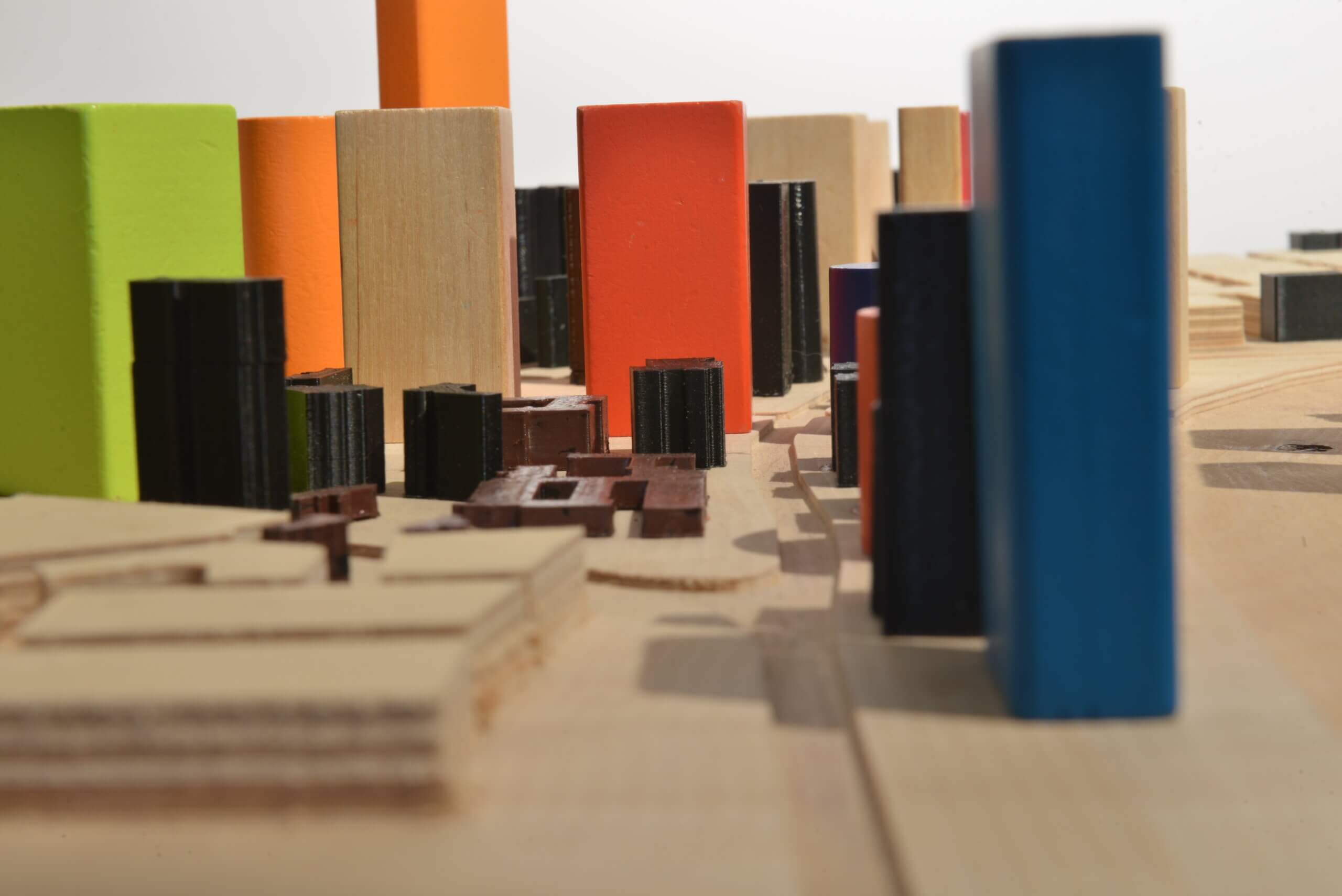

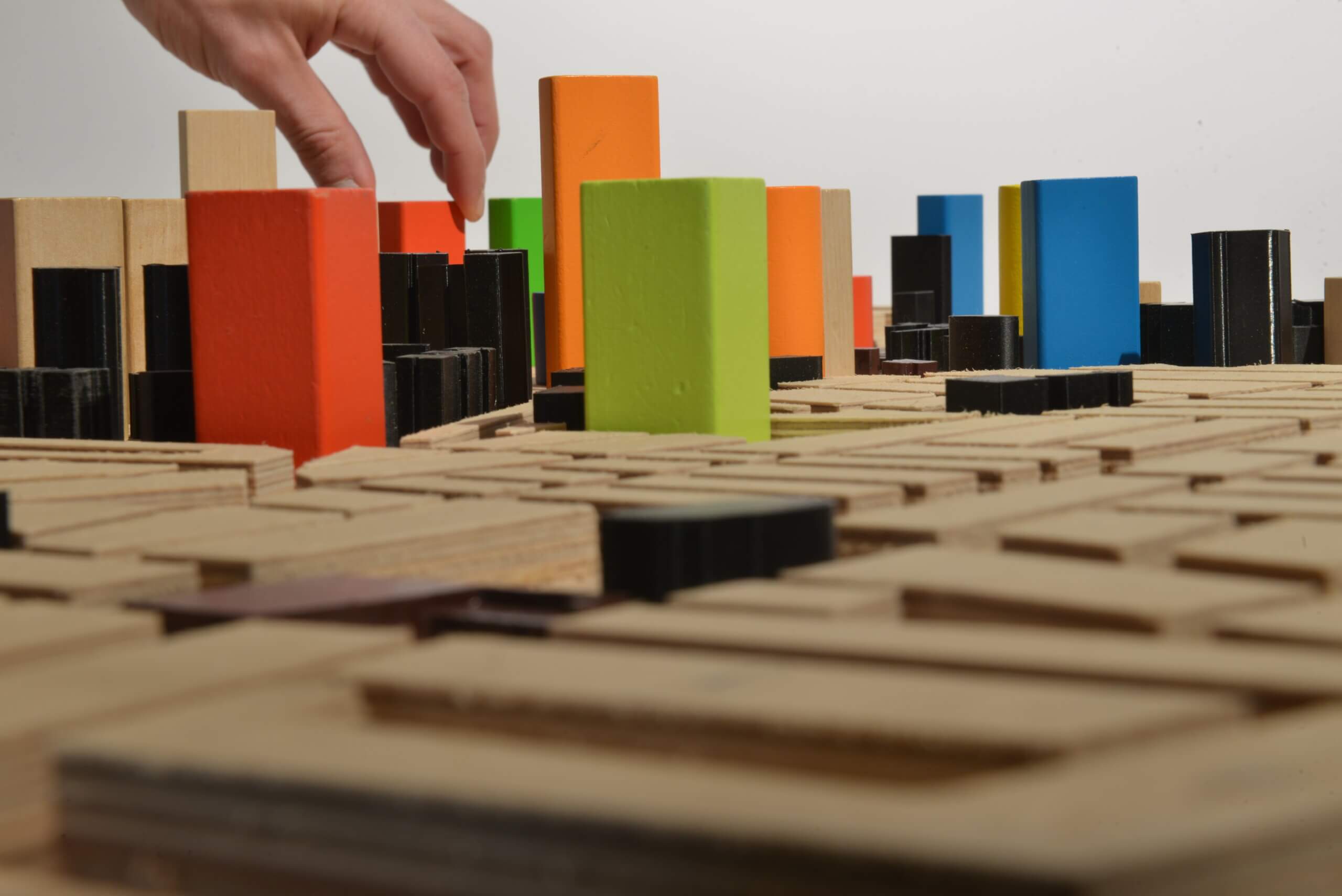

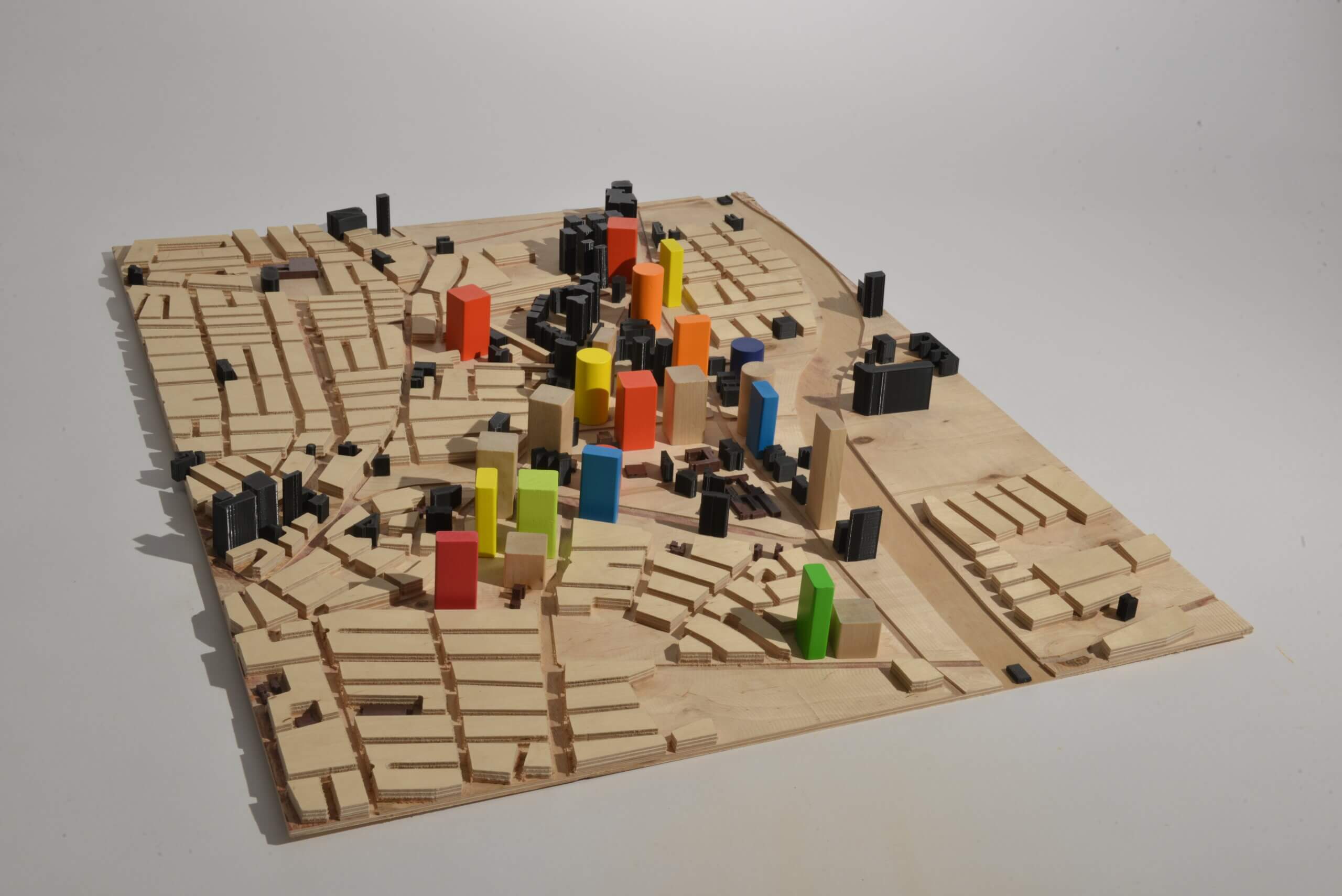

מודל בקנ”מ 1:2500. שכבת העץ אפשרה הצגה אחידה של המרקם הבנוי בעיר והבליטה את מערכת הרחובות, מבנה הבלוק וגובהו ביחס לפיתוח האינטנסיבי של מרכז העסקים המתחדש. אזורים שעתידים להשתנות ללא תכנית ידועה, נשארו חשופים כדי לאפשר הוספת נפחים דינאמית עליהם.
Project by:
Amalia Eliakim Student
Project by:
Uri MichaeliStudent

Technical Info:

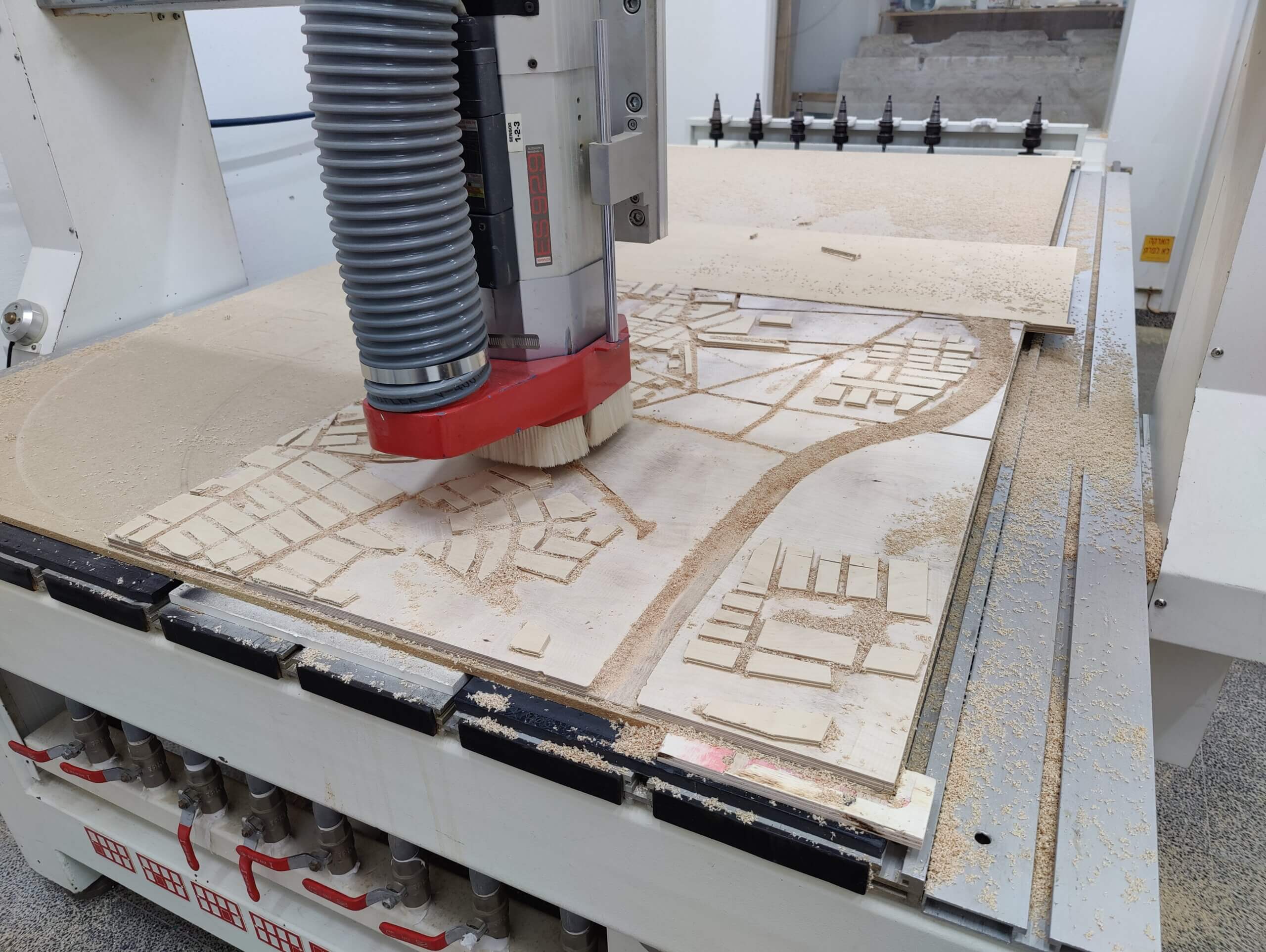

3 axis CNC
3D printing

Materials in use:
Plywood
PLA

Cost and time:

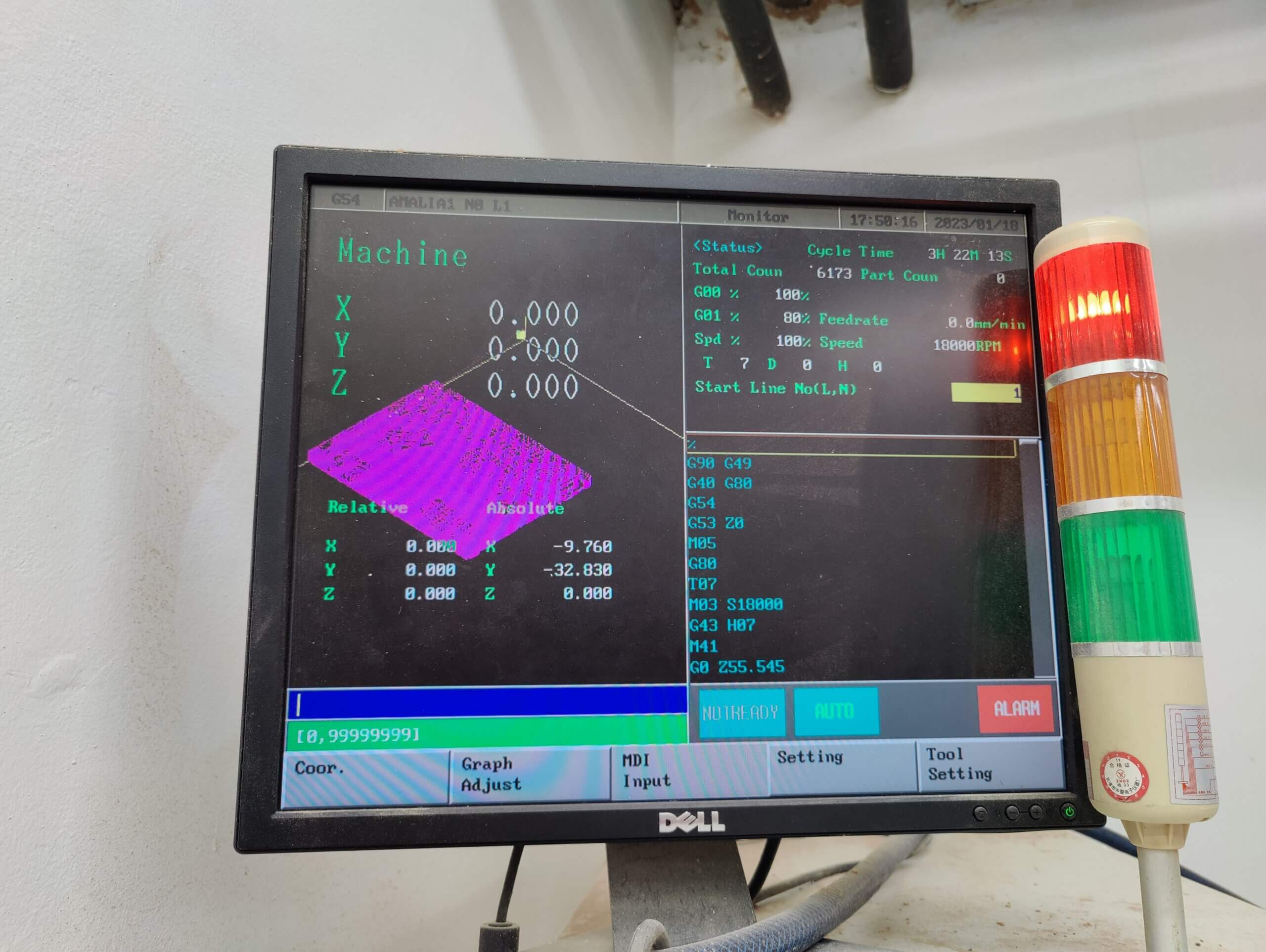

CNC work time – 3:22 hours of routing
CNC file preparation – NA
CNC cost – 316 ILS at student rate

Materials cost:
Plywood,PLA – NA

Total Project cost:
NA
