DJI RS 2

Home › Technologies › Photography and Media › DJI RS 2

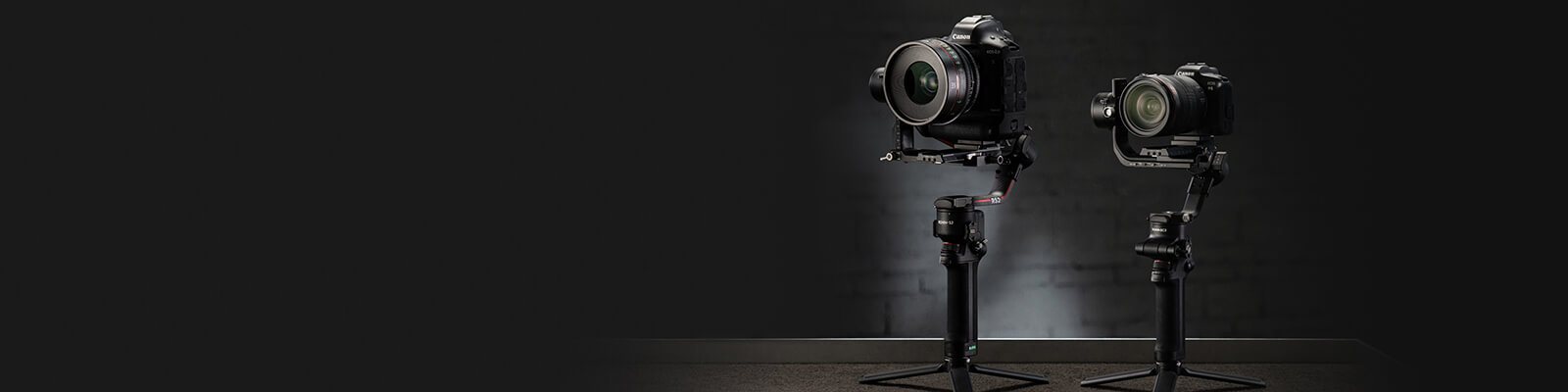

Gimbal Stabilizer

DJI RS 2 isn’t just a gimbal – it is an unparalleled solution for dynamic cinematography. Every design element and feature is made to deliver industry-leading camera stabilization. Simply put, DJI RS 2 is crafted for you to master filmmaking.

Specs

Peripheral

  • Accessory Connections

  • RSA/NATO ports
    1/4″-20 mounting hole
    Cold shoe mount
    Video transmission/follow focus motor port (USB-C)
    RSS camera control port (USB-C)
    Follow focus motor port (USB-C)

  • Battery

  • Model: BG30-1950mAh-15.4V
    Type: LiPo 4S
    Capacity: 1950 mAh
    Power: 30.03 Wh
    Max. Battery Life: 12 h
    Charging Time: 1.5 h (24W USB adapter using the QC 2.0 or PD protocol)
    Suggested Charging Temperature: 5°C to 40°C

  • Connections

  • Bluetooth 5.0; USB-C

  • Mobile Assistant Software Requirements

  • iOS 11 or above;
    Android 7.0 or above

  • Languages supported by the touchscreen

  • English, Simplified Chinese, Traditional Chinese, German, French, Korean, Japanese, Spanish, Portuguese (Brazil), Russian, Thai

Working Performance

  • Tested Payload

  • 4.5 kg

  • Maximum Controlled Rotation Speed

  • Pan: 360°/s
    Tilt: 360°/s
    Roll: 360°/s

  • Mechanical Endpoint Range

  • Pan axis control: 360° continuous rotation
    Roll axis control: -95° to +240°
    Tilt axis control: -112° to +214°

Mechanical & Electrical Characteristics

  • Operating Frequency

  • 2.4000 GHz – 2.4835 GHz

  • Transmission Power

  • <8 dBm

  • Operating Temperature

  • -20° to 45° C

  • Weight

  • Gimbal: Approx. 960 g  (excluding the Quick-Release Plates and Camera Mounting Plate)
    Camera Mounting Plate: Approx. 150 g
    BG30 Grip: Approx. 265 g
    Extended Grip/Tripod: Approx. 226 g
    Upper and Lower Quick-Release Plates: Approx. 105 g

  • Gimbal Dimensions

  • Folded: 260×265×70 mm (excluding the BG30 grip)
    Unfolded: 410×260×195 mm (including the BG30 grip, excluding the extended grip/tripod)
