3DP Workbench 300 Pro

Home › Technologies › 3D Printing › 3DP Workbench 300 Pro

FDM/FFF 3D Printer - larger size

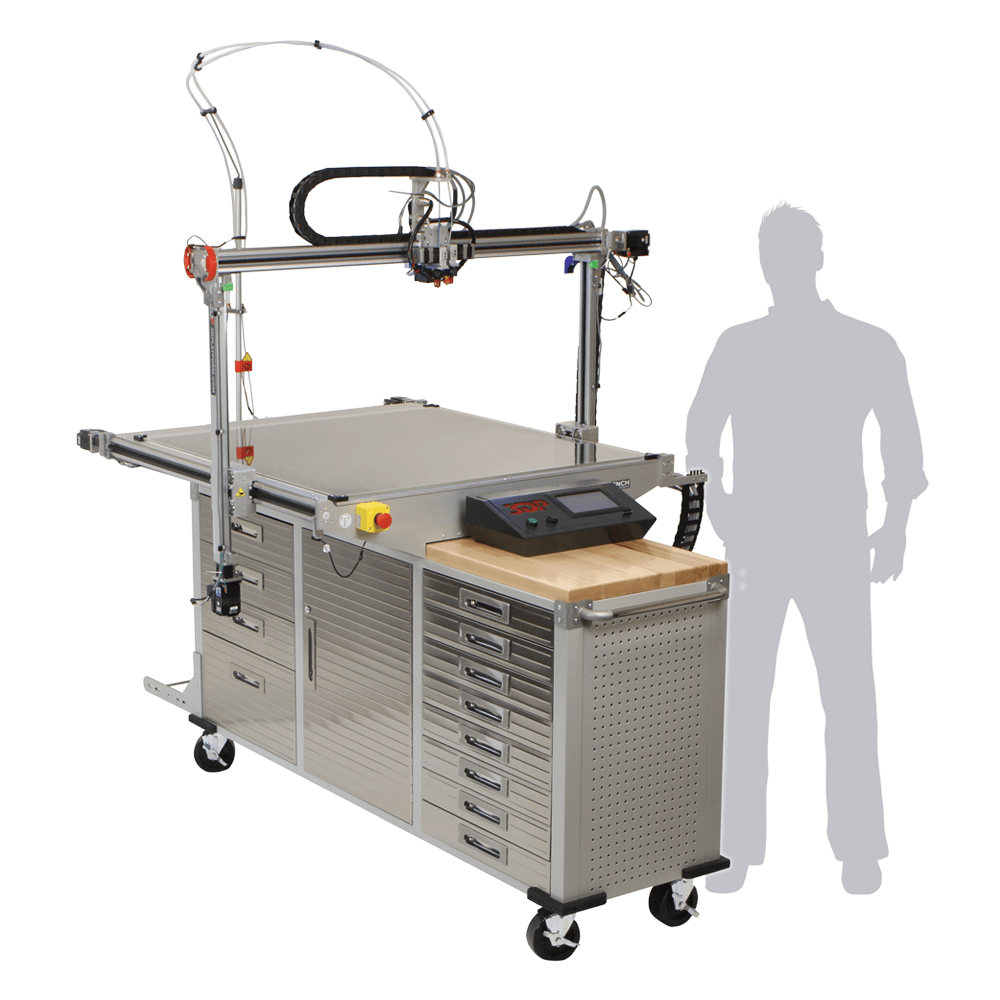

The 3D Platform 300 Series WorkBench Pro is an industrial 3D printer.
  • Technology: Fused Filament Fabrication (FFF)
  • Build dimensions: 1000mm x 1000mm x 700mm
  • Build volume: 0.7m³
  • Layer height: starting at 70 microns (0.027″)
  • Filament diameter: 2.85mm (preferred) or 1.75mm
  • Extruder : Dual RRD Bulldog
  • Hotend : Dual proprietary HFA extruder (HFE300/900 Upgrade possible)
  • Nozzle diameter: 0.2mm – 2.5mm
  • Maximum nozzle temperature: 295°C
  • Heatbed : Yes
  • Bed-leveling : Auto-Mesh bed leveling
  • Controller : Duet (32-bit, 120MHz ARM Cortex M4 Processor)
  • Interface & Connectivity : 7” TFT display and WIFI
  • Axis Motors : SurePrint Step-Servo hybrid Motors
  • Material: Thermoplastics > Standard (PLA, ABS…), Thermoplastics > Engineering (PC, nylon…)
  • Slicing software: Simplify3D
  • Control software: Simplify3D, Repetier-Host
