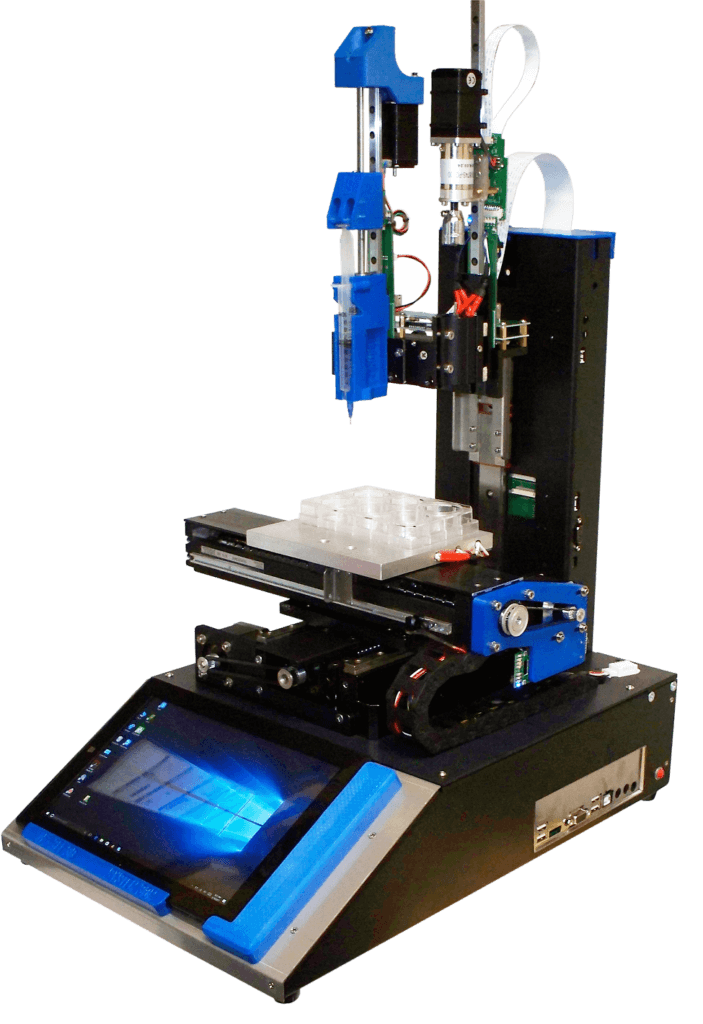

Hyrel 3D Engine HR

Home › Technologies › 3D Printing › FFF/FDM 3D Printers › Hyrel 3D Engine HR

3D bioprinter

Designed specifically with the needs of the Bioplotting / Bioprinting community in mind!

ENGINE HR – HIGH RESOLUTION

High Reliability – Low Maintenance – High Uptime – High Resolution

  • The EHR printers work with all Hyrel print heads, allowing you to work with numerous materials, including store-bought or home-made filaments, clays, pastes, hydrogels, photo-initiators, and cementitious materials, but we recommend the 16A for materials printed at over 300 °C
  • Designed with safety in mind
  • Rugged, all-metal design
  • Includes interchangeable mounting system
  • Plug-and-play modular heads
  • Ready for upgrade/expansion options
  • Compatible with large volume extruders
  • Please note that thermoplastics like ABS, PLA, Nylon, NinjaFlex, FilaFlex, etc. do much better with a heated enclosure.
  • 1.25 micron (or better) resolution in all axes.

    TECH SPECS

    BUILD VOLUME
    • X Axis 100 mm
    • Y Axis 100 mm
    • Z Axis 100 mm
    POSITIONAL ACCURACY:
    • X Axis +/- 12 microns
    • Y Axis +/- 12 microns
    • Z Axis +/- 10 microns
    POSITIONAL RESOLUTION:
    • X Axis 1.25 microns
    • Y Axis 1.25 microns
    • Z Axis 1 micron
    CHASSIS:
    • Powder-coated Steel & Anodized Aluminum (no enclosure)
    MOTION CONTROL:
    • Precision Ball Screw in Z-axis
    • Precision Linear Bearing System in X, Y, and Z Axes
    ELECTRONICS:
    • State-of-the-art 150+ MHz 32-bit ARM processor
    • Modular, micro-stepping motor-drivers with closed-loop encoding
    • Integrated, Dual CAN-bus architecture
    • “Smooth Move” motion control technology firmware
    TABLET PC:
    • USB: Four USB 2.0 Ports (External)
    • WLAN: WiFi Capable
