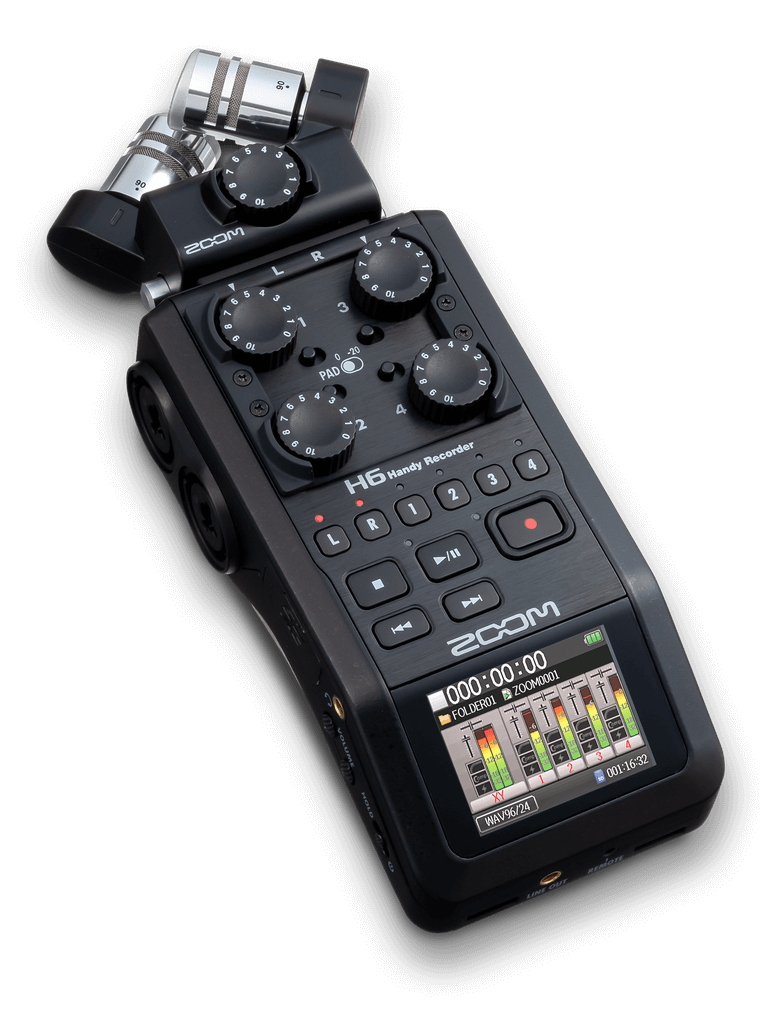

Zoom H6
- Interchangeable input capsules
- Six-track simultaneous recording
- Four mic/line inputs with XLR/TRS combo connectors
- Gain control knobs and -20dB pads for each input
- Supplied XYH-6 X/Y capsule provides secondary input via a stereo ⅛” Mic/Line In mini phone jack
- Phantom power for all main inputs: +12/+24/+48V
- Large full-color, angled LCD display
- Records directly to SD, SDHC and SDXC cards up to 1TB
- Up to 24-bit /96kHz audio in BWF-compliant WAV or a variety of MP3 formats
- Auto-record, Pre-record and Backup-record functions mean that you’ll never miss that perfect take
- Built-in effects, including low-cut filtering, compression, and limiting
- Multichannel and stereo USB audio interface for PC/Mac/iPad
- Accepts standard AA alkaline or NiMH rechargeable batteries
- Over 20 hours of operation with 4 AA alkaline batteries
SPECS
RECORDING MEDIA
| SD CARD: | 16MB to 2GB |
| SDHC CARD: | 4GB to 32GB |
| SDXC CARD: | 64GB to 1TB |
INPUTS
| XYH-6 X/Y MIC: | Mic type: Unidirectional |
| Sensitivity: -41 dB, 1 kHz at 1 Pa | |
| Input gain: -∞ to 46.5 dB | |
| Max sound pressure input: 136 dB SPL | |
| XYH-6 MIC/LINE IN: | Connector: 1/8″ stereo mini jack |
| Input level: – ∞ to 46.5 dB | |
| Input impedance: 2 k Ω | |
| Plug-in power: 2.5V supported | |
| MSH-6 MS MIC: | Mic types: Unidirectional and bi-directional |
| Sensitivity: -37 dB, 1 kHz at 1 Pa (unidirectional) | |
| -39 dB, 1 kHz at 1 Pa (bi-directional) | |
| Input gain: -∞ to 42.5 dB | |
| Max sound pressure input: 120 dB SPL (unidirectional) | |
| 122 dB SPL (bi-directional) | |
| INPUTS 1 TO 4: | Connectors: XLR / TRS combo jacks |
| (XLR: Pin 2 hot / TRS: Tip hot) | |
| Input gain: (PAD OFF) -∞ to 55.5 dB | |
| Input gain: (PAD ON) -∞ to 35.5 dB | |
| Input impedance: 1.8kΩ or more | |
| Max input level: +22 dBu (PAD ON) | |
| Phantom power: +12V /+24V /+48V | |
| (Phantom power can be turned on/off independently for Inputs 1 – 4) | |
| Equivalent Input Noise (EIN): -120 dBu or less |
OUTPUTS
| LINE OUT: | Jack type: 1/8″ stereo mini jack |
| Rated Output Level: -10 dBu when output load impedance is 10k Ω or more | |
| PHONE OUT: | Jack type: 1/8″ stereo mini jack |
| Output Level: 20 mW +20 mW into 32 Ω load | |
| BUILT-IN SPEAKER: | 400mw 8 Ω mono speaker |
RECORDING FORMATS
| WAV: | Sampling frequency: 44.1/48/96 kHz |
| Bit rate: 16/24 | |
| (Mono/Stereo, BWF-compliant) | |
| Maximum simultaneous recording tracks: 8 (L/R + INPUT 1 to 4 + L/R backup) | |
| (Backup recording: -12dB lower than set L/R input ga | |
| MP3: | Sampling frequency: 44.1kHz |
| Bit Rate: 48/56/64/80/96/112/128/160/192/224/256/320kbps | |
| Maximum simultaneous recording tracks: 2 |
DISPLAY
| LCD SCREEN: | 2.0-inch full color LCD (320 x 240 pixels) |
USB
| MASS STORAGE CLASS OPERATION: | Class: USB2.0 High Speed |
| AUDIO INTERFACE OPERATION: MULTI-TRACK MODE: | Class: USB2.0 High Speed |
| Inputs / Outputs: 6 / 2 | |
| Sampling frequency: 44.1/48kHz/96kHz | |
| Bit rate: 16/24 bit | |
| USB bus powered operation possible |
POWER REQUIREMENTS
| AA size (LR6) battery x 4 | |
| Alkaline or NiMH type | |
| AC adapter: AD-17 (DC5V/1A/USB-type) (optional) | |
| USB bus power |
BATTERY LIFE
| Battery life (with alkaline battery, continuous recording) Over 20 hours |
DIMENSIONS AND WEIGHT
| H6: 77.8mm (W) x 152.8mm (D) x 47.8mm (H), 280g | |
| XYH-6: 78.9mm (W) x 60.2mm (D) x 45.2mm (H), 130g | |
| MSH-6: 58.0mm (W) x 67.6mm (D) x 42.1mm (H), 85g |
